Super 8 Digitalisierungsanlage mit Canon-Kamera
1016 | 16 mm complete set (Bauer P8 TS univ.) for your own photo or film camera

1016 | 16 mm complete set (Bauer P8 TS univ.) for your own photo or film camera

SKU: 1016
€1,998.00Price

incl. 19% VAT


 Projector in refurbished condition / all items except the projector are new

 for all cameras with interchangeable lenses and video mode

 This offer includes:

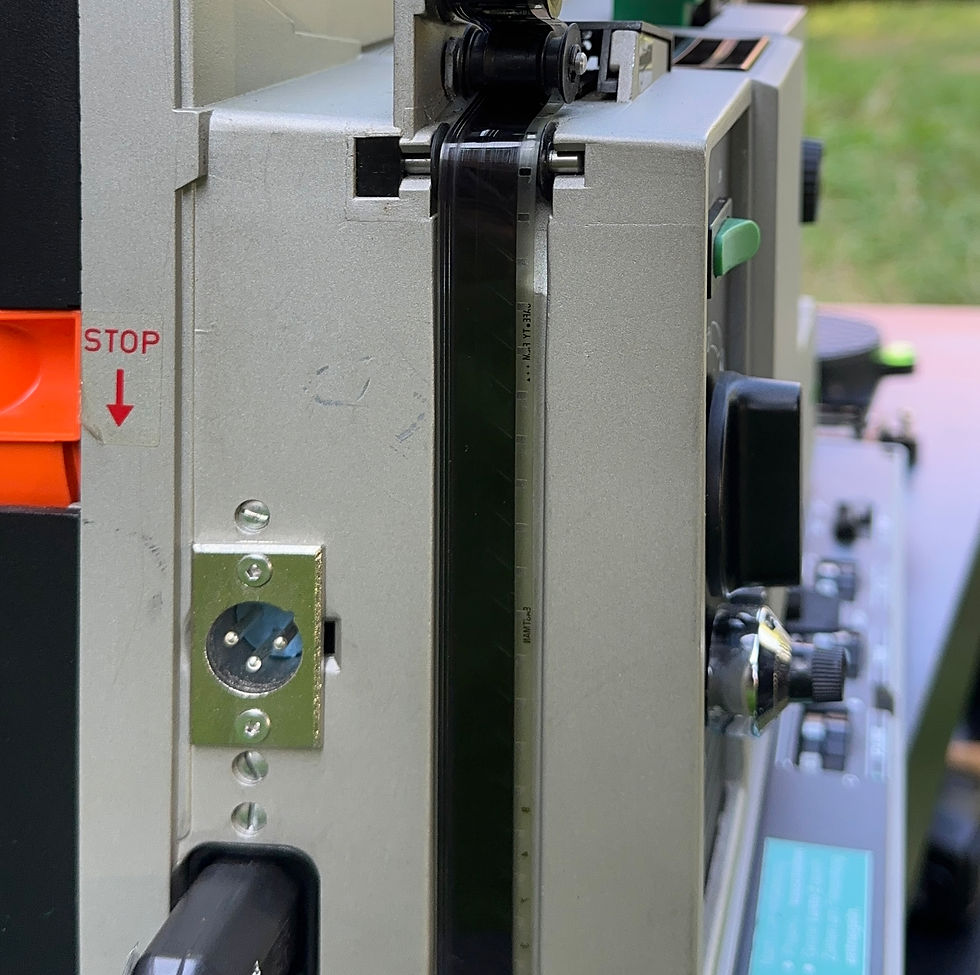

  •  Studio projector Bauer P8 TS universal, modified for film transfer
  •  LED lamp with brightness and color temperature control (item no. 4001)
  •  Speed control integrated into the projector housing
  •  16mm transfer lens (item no. 5116) for film transfer with adapter for your own camera (interchangeable lens and video mode required)
  •  Adapter for your camera
  •  all necessary cables

 Taking photos and filming with the new generation of mirrorless (DSLM) or DSLR cameras sets quality standards that can now also be realized in the transfer of analog films.
The size of the sensor enables sharp, low-noise films that offer a better contrast range than conventional cameras.

With the help of our high-quality optics for photo and film cameras (including mirrorless cameras with interchangeable lenses), the projector and camera are firmly connected. The special optics can be used with the sensor sizes Micro Four-Thirds, APS-C and Super 35, so you can also use them later in conjunction with another camera.

 Our newly developed and improved LED lighting unit with external control panel allows continuous fine and coarse adjustment of the brightness as well as continuous adjustment of the color temperature (item no. 4001). The speed fine control for the projector is integrated into this panel.

After recording, the image must be mirrored using editing software/editing programs (e.g. Premiere Pro, Magix deluxe). Simultaneous mirroring with the recording can also be achieved via HDMI using OBS studio (freeware).

The projector was overhauled by a specialist workshop, the drive belts were replaced and the gripper system was checked.

 Projector specifications:

Film: 16 mm sound and silent films with magnetic or optical sound
Spool capacity 600 m
Automatic film threading
Low-noise and film-friendly transport system
Height adjustment, framer
Projection forward and backward
Speed 18/24 and fine adjustment +/- 3 frames
Fast rewind outside the film channel,

 Magentton and optical sound
Low-wear tape heads
Power switch

Empty spool, operating instructions and power cable are included!


  • PRODUCT INFORMATION

    We were the first company to develop lenses that are specially optimized for Super 8 / 16 mm film transfer with DSLR cameras, film cameras and smartphone or iPhone cameras.

    Photography and filming with the new generation of DSLR cameras and film cameras sets quality standards that can now also be realized in the transfer of narrow films. Due to the size of the sensor and the ever-improving functions, sharp and low-noise films are possible that offer a better contrast range than conventional cameras.

    Depending on the camera, the transfer can be done up to 4k, in combination with our special lamp and a projector that has been modified exactly to 16.66 frames per second (e.g. ELMO GS-1200 with quartz control or electronically controlled Bauer projector).

    By using different spacer rings, the optics can be adjusted to various sensor sizes of the cameras.

    A flexible ring, with which the lens can be adjusted laterally, even allows recording Normal 8 / Double 8 in addition to Super 8 films.

    The HD or also 4k scanning reproduces the Super 8 film in brilliant quality and can be carried out easily and without great expertise. Only the horizontal mirroring of the film has to be done after the recording with a suitable editing software (e.g. Premiere Pro, Magix deluxe ...)
